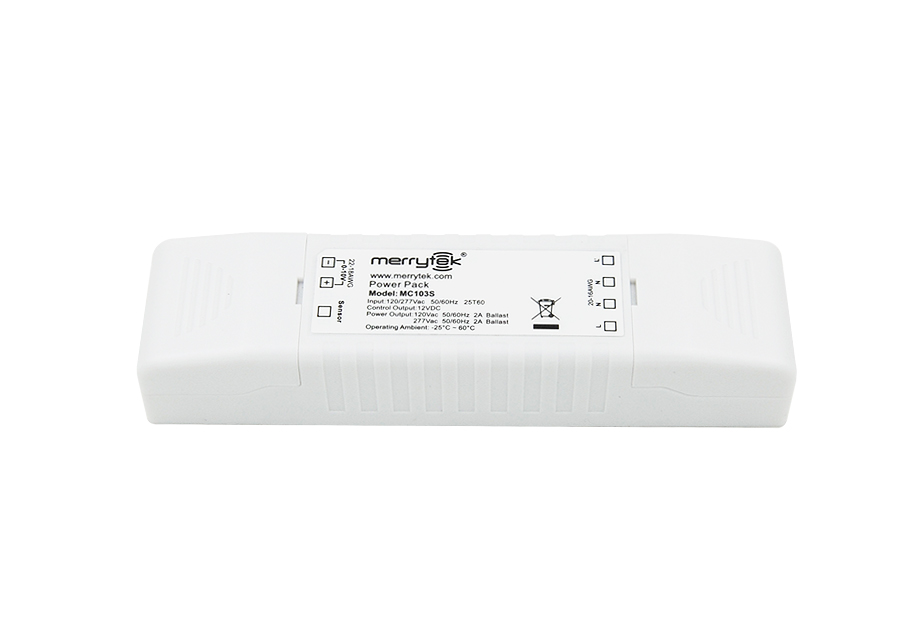

Power Supply for DC Sensor with 1-10v Interface for Corridor Function Suitable for US Market  MC103S

1. Features


■ Input 120-277Vac



■ Output 120-277Vac



■ Auxiliary output 12Vdc



■ Built-in relay,switch on/off power by relay



■ 1-10V interface for corridor function with sensor



■ 5 years warranty

 US Market MC103S DC Sensor 1-10v Interface for Corridor Function


2. Parameter



 Input  Input Voltage  108-305VAC

 Rated Voltage  120-277VAC
 Stand-by Power  ≤1W
 Surge  L-N 1KV
 Wiring  Press-in terminals 0.75-1.5mm2
 Output  Ouput voltage  12Vdc
 Sensor   Parameters  Working mode  ON/OFF,0-10V dimming
 Transmitting power  0.5mW Max.
 Load Capacity

 120V,50/60Hz,2A ballast
 277V,50/60Hz 2A,ballast
 220-240V,50/60Hz,2A Inductive
 0-10V dimming

 <50mA
 10%(1.4-1.6V),20%(1.9-2.1V),30%(2.9-3.1V),50%(4.9-   5.1V)
 Wiring  Press-in terminals 0.75-1.5mm2

Operating

Environment

  Operating Temperature  -25℃…+60℃
 Storage Temperature

 Temperature: -40℃…+80℃;
 Humidity: 10%-95% (non-condensing)
 EMC standards  EN55015, EN61000-3-2, EN61000-3-3, EN61547
 Safety standard  EN61347-1,EN61347-2-13
 Environmental Requirement  Compliant to RoHS
 Certificate  CE pending
 IP Rating  IP20
 Protection Class  Class II
 Installation  Built-in/stand-alone
 Dimension  120x30x22mm
 Package  cartons
 Net Weight  58g
 Lifetime  5 years warranty @Ta 230V full load


3. Function (Below function is available only work with Merrytek DC sensor)

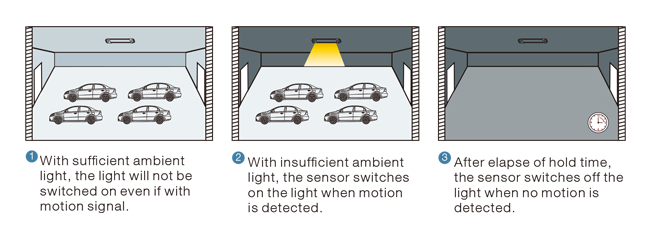

1) On/OFF Function (stand-by period be set to “0”s)
US Market MC103S DC Sensor 1-10v Interface for Corridor Function

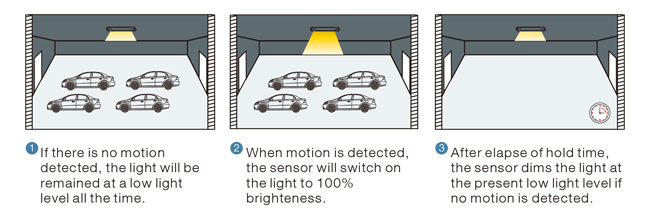

2) 2-step dimming function (stand-by period be set to “+∞”)

US Market MC103S DC Sensor 1-10v Interface for Corridor Function

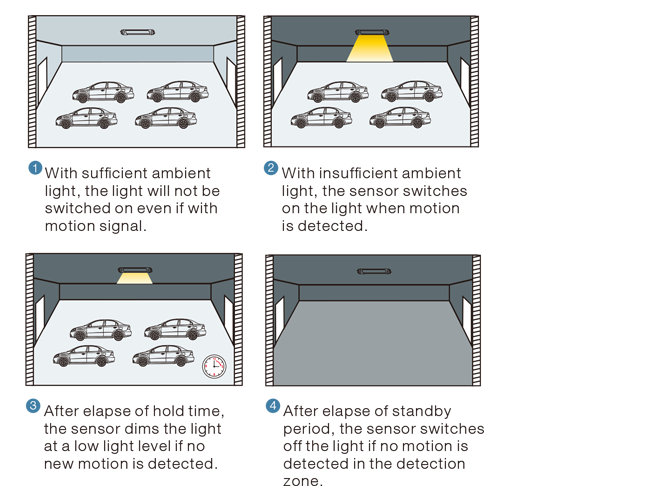

3) 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)

US Market MC103S DC Sensor 1-10v Interface for Corridor Function

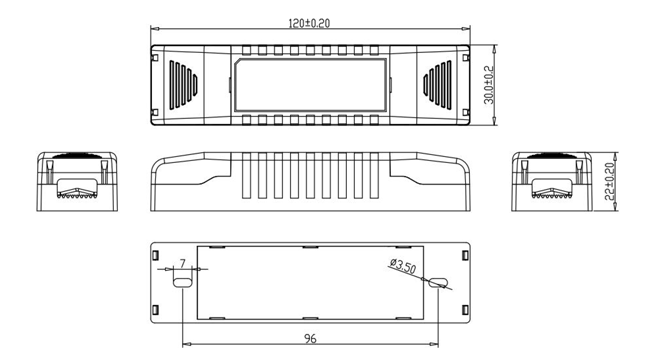

4. Dimension (mm)
US Market MC103S DC Sensor 1-10v Interface for Corridor Function

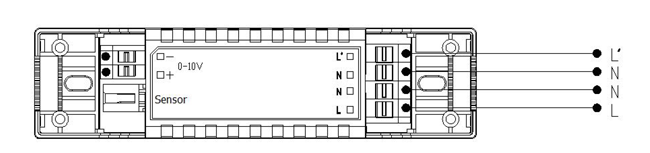

5. Wiring
US Market MC103S DC Sensor 1-10v Interface for Corridor Function

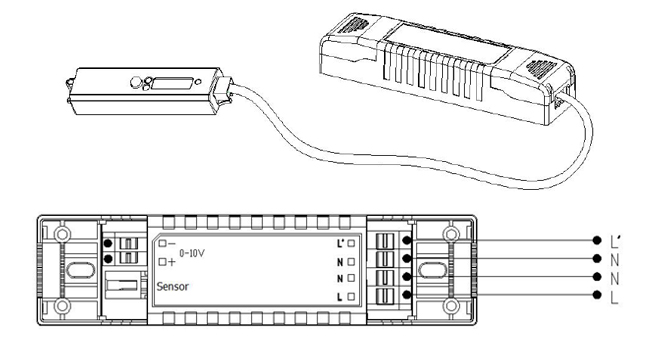

6. Wiring example when combined with Merrytek DC sensor
US Market MC103S DC Sensor 1-10v Interface for Corridor Function
7. Application Notice


1) The sensor should be installed by a professional electrician. Please turn off the power before installing or wiring.

2) MC103S can only work with Merrytek DC sensor,please contact with Merrytek sales for right DC sensor model No.accroding to your application.
