10m Mounting Height ON/OFF Function Long Distance Pir Sensor Standalone Design

  • 1
  • 2
  • 3

Brand Name : Merrytek

Model Number : MSA015S IR

Certification : CE

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : White box+ White box tags+ Clapboard+ Carton(K=A)

Input Voltage : 100-240Vac

Working current : 20mA mAX.

Stand-by Power : ≤0.2W

Function : ON/OFF function

Detecting Area (radius) : ≥4m

Max. Mounting Height : 10m

Installation : Flush-mounted

Cut size : Φ65-70mm

Contact Now

10m mounting height ON/OFF function long distance pir sensor standalone design


1. Features
1) PIR motion detection
2) Accurate ON/OFF output
3) Daylight sensor detection available
4) Detection area, hold time, and daylight threshold can be set by remote/DIP switch
5) Max detection range: 8-10m in diameter
6) 10m max mounting height
7) Max loading capacity :800w resistive loading and 400w inductive loading
8) Warehouse, workshop, and lobby motion detection is highly recommended
9) Flush mounting and surface mounting available

2. Parameters


Input/Output Input voltage 100-240V AC
Rated voltage 220V AC
Power consumption 20mA max
Output signal ≤0.2W @220V DC
Load Capacity ON/OFF
Power consumption 800w resistive loading or 400w inductive loading
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area DIP or remote setting: 100%/75%/50%/25%
Hold Time

DIP: 5s/1min/3min/5min/10min/20min/30min
MH10remote:5s/30s/1min/3min/5min/10min/20min/30min
Daylight Sensor

DIP: 5Lux/50Lux/150Lux/Disable
MH10remote: 5Lux/15Lux/30Lux/50Lux/100Lux/
150Lux/Disable
Radius detection range(based on 100% sensitivity) 4-5m based on 10m mounting height
Remote control Available
Mounting height typical value:10m
Application environment Drill hole Φ65-70mm
Working temperature 0℃...+35℃
Storage temperature -40℃~+80℃
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available


3. Dimension


10m Mounting Height ON/OFF Function Long Distance Pir Sensor Standalone Design10m Mounting Height ON/OFF Function Long Distance Pir Sensor Standalone Design
4. Wiring Diagram


10m Mounting Height ON/OFF Function Long Distance Pir Sensor Standalone Design

5. Start Process & Initialization

When powered on, the sensor indicator will turn off after flashing for 10S and will not detect a moving signal during this time. After 10S,you can use our MH10 remote or dip switch to adjust detection area, hold time, daylight sensor, etc

6. Factory Settings

Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable

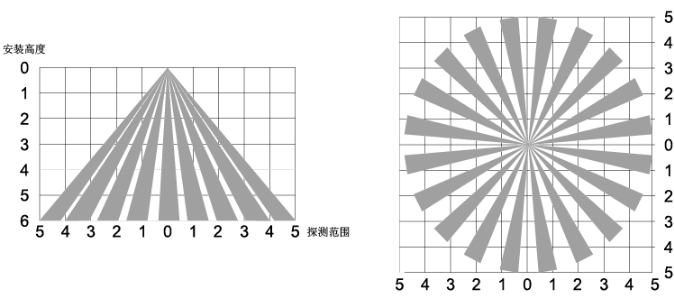

7. Detection radiation

10m Mounting Height ON/OFF Function Long Distance Pir Sensor Standalone Design
8. DIP Settings


                                                                                     Detection Area



  1 2
100% ON ON
75% - ON
50% ON -
25% - -



                                                                                           Hold Time


  3 4 5 6
Ⅰ ON ON ON ON 5S
Ⅱ ON - ON ON 1min
Ⅲ ON ON - ON 3min
Ⅳ ON ON ON - 5min
Ⅴ ON ON - - 10min
Ⅵ - - ON ON 20min
Ⅶ - - - - 30min



                                                                                       Daylight Sensor


  7 8
Ⅰ ON ON 5Lux
Ⅱ - ON 50Lux
III ON - 150Lux
Ⅳ - - Disable


       **Once the daylight sensor is set as Disable, our motion sensor will detect human movement regardless of the environment lux

10. MH10 Remote Control


10m Mounting Height ON/OFF Function Long Distance Pir Sensor Standalone Design
