MLC40C-PA Natural Light Adaptive LED Driver 40w With Daylight Harvesting Function

  • 1
  • 2
  • 3

Brand Name : Merrytek

Model Number : MLC40C-PA

Certification : CE

Place of Origin : China

MOQ : Stop production, not available.

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Product name : Natural light adaptive led driver 40w

Output power : 40w Max

Output current : 700mA / 750mA /800mA / 850mA / 900mA / 950mA /1000mA /1050mA

Output voltage : 30-40Vdc

Working mode : Daylight harvesting function

Efficiency : ≥82%

Power factor : ≥0.9

Size : 202 x 58 x 30 mm

Contact Now

MLC40C-PA Natural light adaptive led driver 40w with daylight harvesting function with multi-selection of output current and target lux level

Description

1, Multi-selection of output current and target lux level,widely applicable for different luminaires and different environment.
2, Applied for 600x600 LED Panel for office application.
3, Digital dimming to maintain original color temp. of luminare max
4, Working mode: max make use of ambient natural brightness,dim down / up luminaire automatically accroding to change of ambient brightness,to maintain target lux level
5, Output power: 40w max.
6, Output current: 700mA / 750mA /800mA / 850mA / 900mA / 950mA /1000mA /1050mA set vip dip switches
7, Output voltage: 30-40Vdc.
8, Target lux level: 100Lux / 150Lux / 200Lux / 250Lux / 300Lux / 350Lux / 400Lux / 450Lux
9, Suggested distance from window:　≤9m
10, Suggested desk height for target lux level: 75cm
11, IP rating: IP 20.

Mechanical Specification


MLC40C-PA Natural Light Adaptive LED Driver 40w With Daylight Harvesting Function
MLC40C-PA Natural Light Adaptive LED Driver 40w With Daylight Harvesting Function

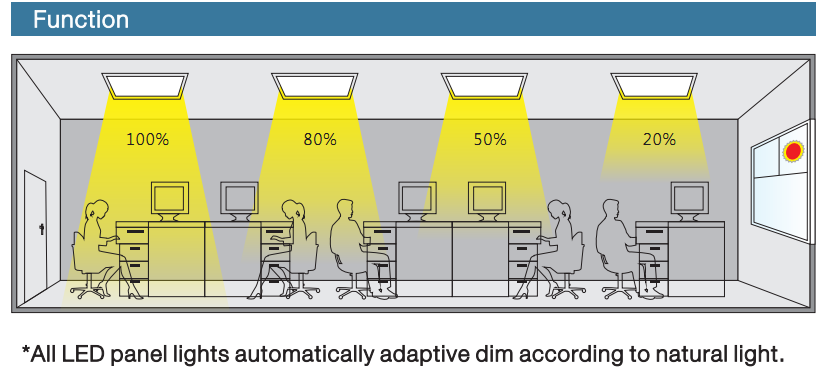

Functions


MLC40C-PA Natural Light Adaptive LED Driver 40w With Daylight Harvesting Function
MLC40C-PA Natural Light Adaptive LED Driver 40w With Daylight Harvesting Function

Specifications





INPUT


Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.16A max

Power factor

≥0.90

Efficiency(Note1)

≥84%

Leakage current

＜0.5mA/240Vac




OUTPUT


Output current/voltage
 and load

700mA / 750mA /800mA / 850mA / 900mA / 950mA /1000mA /1050mA (30-40Vdc)

Output load range

1x40W max

Current accuracy

±5%

Dimming mode

Daylight harvesting function(Target lux level:100Lux / 150Lux / 200Lux / 250Lux / 300Lux / 350Lux / 400Lux / 450Lux)



ENVIRONMENT


Working temp.(Ta)

-20~40℃

Surface temp.(Tc)

85℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

50000hours


PROTECTION


Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest



SAFETY&EMC


Safety

EN61347-1 EN61347-2-13 EN60598-1 EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min;
IN-FG:1500VAC/5mA/1min

OUT-FG:500VAC/5mA/1min


NOTE

1, Efficiency is measured at 1050mA/48Vdc output set by DIP switch
2, All parameters not specially mentioned are measured at 230Vac input,
rated load and 25℃of ambient temp.

Application

600x600mm LED Panel for office application

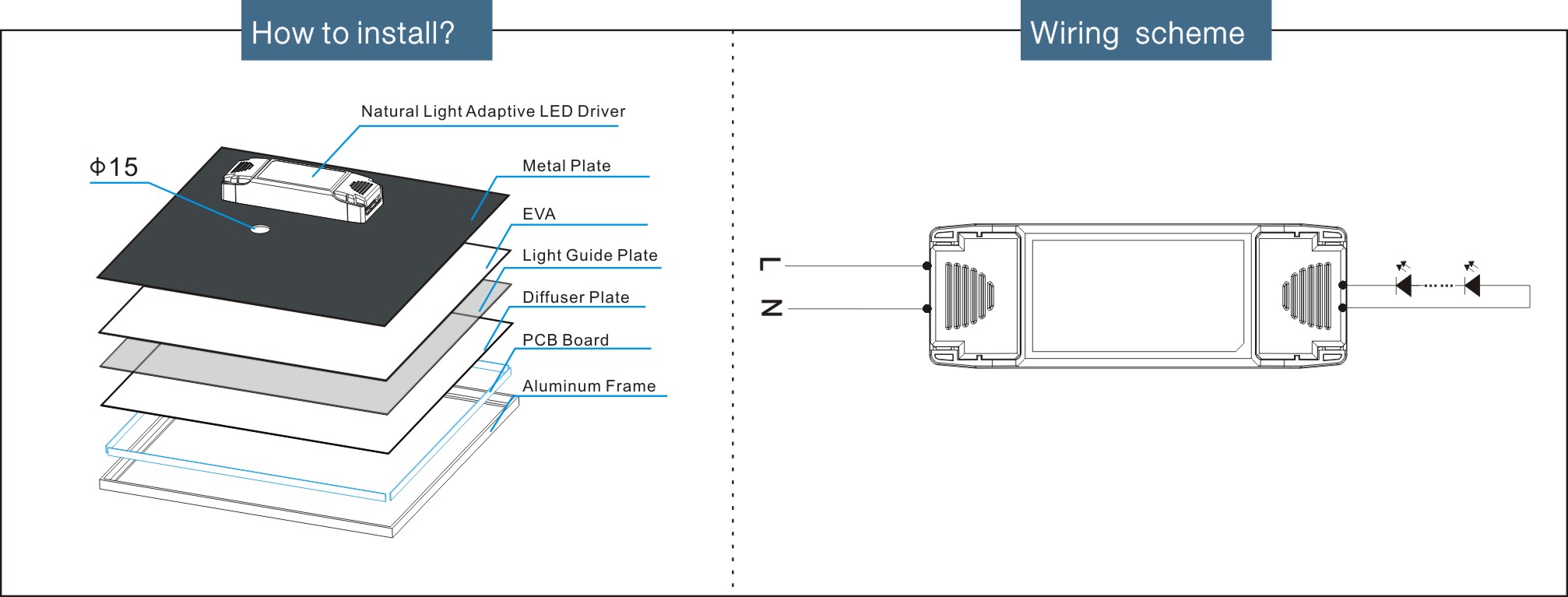

Wire diagram
MLC40C-PA Natural Light Adaptive LED Driver 40w With Daylight Harvesting Function
