Multi - Output Current DALI Dimmable LED Driver , Super Slim DALI LED Dimmer

  • 1
  • 2
  • 3

Brand Name : Merrytek

Model Number : ML70C-PD

Certification : CE /RoHS

Place of Origin : China

MOQ : Stop production, not available.

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 10,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Product Name : DALI Dimmable LED driver

Output Load : 1*70W max

Output Current : 350mA-700mA, Selectable via DIP Switch

Output Voltage : 200Vmax.

Input Voltage : 220-240Vac

Dimming Mode : DALI, PUSH

Working Temperature : -25℃-50℃

Isolation Class : Class II

Approvals : CE

Protection Class : IP20

Contact Now

ML70C-PD 1 x 70w DALI & PUSH DIM led driver multi-output current slim design 280 x 40.5 x 22.8mm

Description

1, This driver is special for both DALI and push dimming function .
2. With Max 200vDC output ,for big load
3, Compatible with latest DALI interface IEC62386-101,IEC62386-102,IEC62286-207
4, Multi output current 350mA to 700mA selectable via DIP switch,one driver is applicable for many luminaires,save purchasing cost and inventory qty for customer.
5, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
6, No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.
7, Maximum length of the cable, from push button to last driver is 20m
8, Press-in terminals in primary and secondary side, easy assembly
9, Protection: Short circuit / Over voltage / Over temperature
10, 5 years guaranty


Mechanical Specification:
Multi - Output Current DALI Dimmable LED Driver , Super Slim DALI LED Dimmer


Specifications




INPUT


Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.17A max

Power factor

≥0.90

Efficiency(Note1)

≥85%

Leakage current

＜0.5mA/240Vac




OUTPUT


Output current and load

350mA 50-200VDC  400mA 50-175V DC
450mA 50-156V DC  500mA 50-140V DC
550mA 50-127V DC  600mA 50-117V DC
650mA 50-106V DC  700mA 50-100V DC

Output load range

1x70W max

Current accuracy

±5%

Dimming mode

DALI, PUSH



ENVIRONMENT


Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

75℃max

Working humidity

20~90%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours


PROTECTION


Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest



SAFETY&EMC


Safety

EN61347-1 EN61347-2-13

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

DALI interface

IEC62386-101, IEC62386-102, IEC62386-207

Approvals

CE

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min


NOTE

1, Efficiency is measured at 550mA/55Vdc output set by DIP switch
2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.

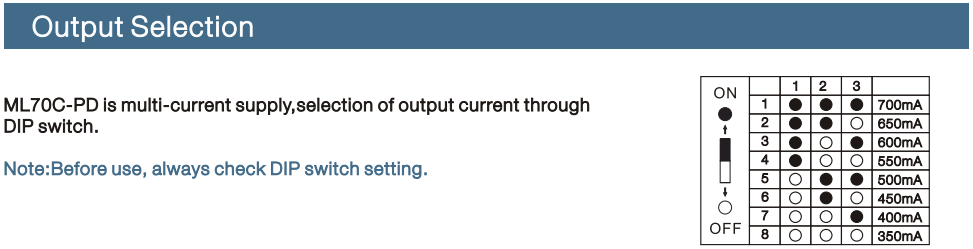

Output current selection

Multi - Output Current DALI Dimmable LED Driver , Super Slim DALI LED Dimmer

PUSH Dim

Short push (<0.1sec): Ignore, to avoid reaction on AC spike.
Short push (0.1~1sec): Switch on or off.
Long push (>1sec): Dimming up or down, dimming automatically stops at minimum or maximum value.

Wring Diagram:

Multi - Output Current DALI Dimmable LED Driver , Super Slim DALI LED Dimmer
