IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II

Name: IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 58 Vdc Class II
Brand: Merrytek
Price: 1 USD

Buy cheap IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II product

Brand Name : Merrytek

Model Number : ML30C-PD

Certification : CE /RoHS

Place of Origin : China

MOQ : Stop production, not available.

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 10,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Approvals : CE

Product Name : DALI Dimmable LED driver

Protection Class : IP20

Output Load : 1x30W max

Output Current : 250mA-700mA, Selectable via DIP Switch

Output Voltage : 60Vmax.

Input Voltage : 220-240Vac

Dimming Mode : DALI, PUSH

Working Temperature : -25℃-50℃

Isolation Class : Class II

Contact Now

IP20 Indoor Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II

Description:

Built-in DALI interface.
Support Push dimming function.
Multi output current 250mA to 700mA selectable via DIP switch.
Memory function: Lights returns to previous dimming level when switch off and on again, even at mains restores.
No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.
Maximum length of the cable, from push button to last driver is 20m
Press-in terminals in primary and secondary side, easy assembly
Protection: Short circuit / Over voltage / Over temperature
5 years guaranty

Specifications

INPUT	Input voltage	220-240Vac
	Input frequency	50-60Hz
	Input current	0.16A max
	Power factor	≥0.90
	Efficiency(Note1)	≥85%
	Leakage current	＜0.5mA/240Vac
OUTPUT	Output current and load	250mA 16-60Vdc 15W max, 350mA 16-60Vdc 21W max 400mA 16-60Vdc 24W max, 450mA 16-60Vdc 27W max 500mA 16-58Vdc 29W max, 550mA 16-55Vdc 30W max 600mA 16-50Vdc 30W max, 700mA 16-43Vdc 30W max
	Output load range	1x30W max
	Current accuracy	±5%
	Dimming mode	DALI, PUSH
ENVIRONMENT	Working temp.(Ta)	-20~50℃
	Surface temp.(Tc)	85℃max
	Working humidity	20~90%RH non-condensing
	Storage temp.	-40~80℃
	Life time	≥50000hours
PROTECTION	Isolation class	Class II, SELV
	Protection class	IP20
	Short circuit	Protection type; auto rest
	Over voltage	Protection type; auto rest
	Over temperature	Protection type; auto rest
SAFETY&EMC	Safety	EN61347-1 EN61347-2-13
	EMC	EN55015, EN61000-3-2ClassC
	EMC	EN61000-3-3, EN61547
	DALI interface	IEC62386-101, IEC62386-102, IEC62386-207
	Approvals	CE
	Withstand voltage	IN-OUT:3.75KVAC/5mA/1min
NOTE	1, Efficiency is measured at 550mA/55Vdc output set by DIP switch 2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp.

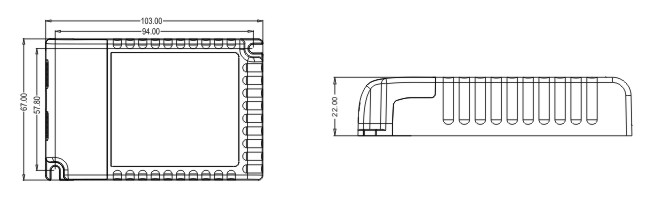

Mechanical Specification:

IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II

Dimming Operation:

PUSH Dim

Short push (<0.1sec): Ignore, to avoid reaction on AC spike.

Short push (0.1~1sec): Switch on or off.

Long push (>1sec): Dimming up or down, dimming automatically stops at minimum or maximum value.

Wring Diagram:

IP20 Indoor Low Voltage Dali LED Dimming Driver 30 Watt 16 - 58 Vdc Class II
