MLC08C-P Sensor driver 8w 300mA integrated with sensor dimming function 90 x 54.5mm x 16mm
Description
1, Designed esp. for 300x300mm Panel light in washing room.
2, Integrate Microwave sensor and dimmable led driver technology,save labour cost for installation.
3, Working mode: Auto switch on/off,or dimming by motion and ambient brightness level.
4, Output power: 8w max.
5, Output current: 300mA
6, Output voltage: 16-28Vdc.
7, HF system: 5.8GHz±75MHz,ISM wave band.
8, Transmitting power: ≤0.5mW.
9, Power consumption: ≤1w(Stand-by).
10, Detection zone(D x H): 12m x 6m.
11, Detection sensitivity: 10%,50%,75%,100% set via dip switches.
12, Hold time: 10s,90s,3min,10min set via dip switches.
13, Corridor function:0s,30s,10min,disable set via dip switches.
14, Daylight sensor: 5Lux,15Lux,50Lux,set via by dip switches.
15, Stand-by dimming level: 20%.
16, Mounting height: 6m max.
17, IP rating: IP 20.

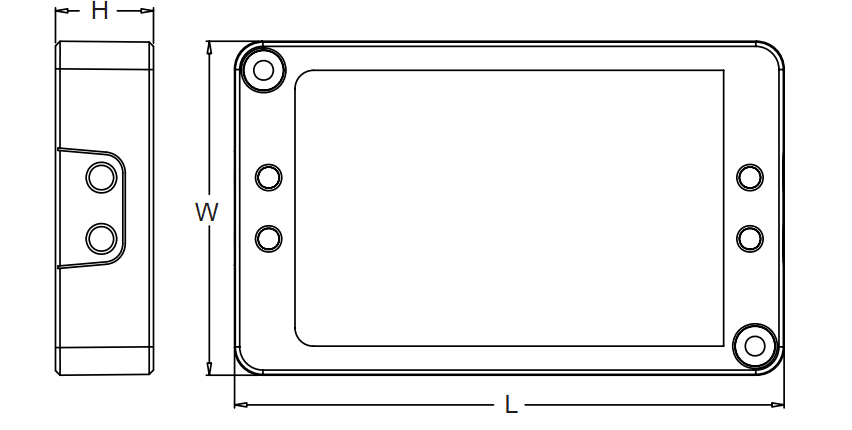

Mechanical Specification
Functions
Specifications
| Operating voltage | 220-240Vac, 50Hz |
| Output power | 8w max |
| Output current | 300mA |
| Output voltage | 16-28Vdc |
| Power consumption | ≤1W(standby) |
| Transmitting power | <0.5mW |
| Detection zone Max.(D x H) | 12m x 6m |
| Motion detection | 0.5~3m/s |
| Detection angle | 150°(wall installation) 360°(ceiling installation) |
| IP rating | IP20 |
| Operation Temperature | -20℃~50℃ |
| Hold time | 5s / 90s / 3min/ 10min |
| Detection sensitivity | 10% / 50% / 75% / 100% |
| Daylight sensor | 5lux / 15lux / 50lux / Disable |
| Stand-by period | 0s / 3min / 10min / Disable |
| Stand-by dimming level | 20% |
| Life time | 30,000 hours |
| Guaranty | 3 years |
Application
300x300mm LED Panel in washing room

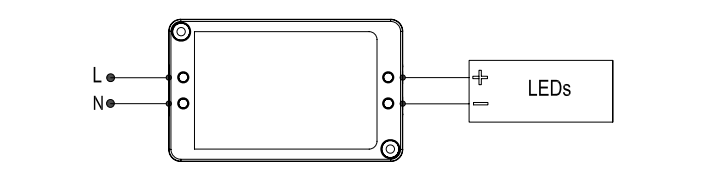

Wire diagram
